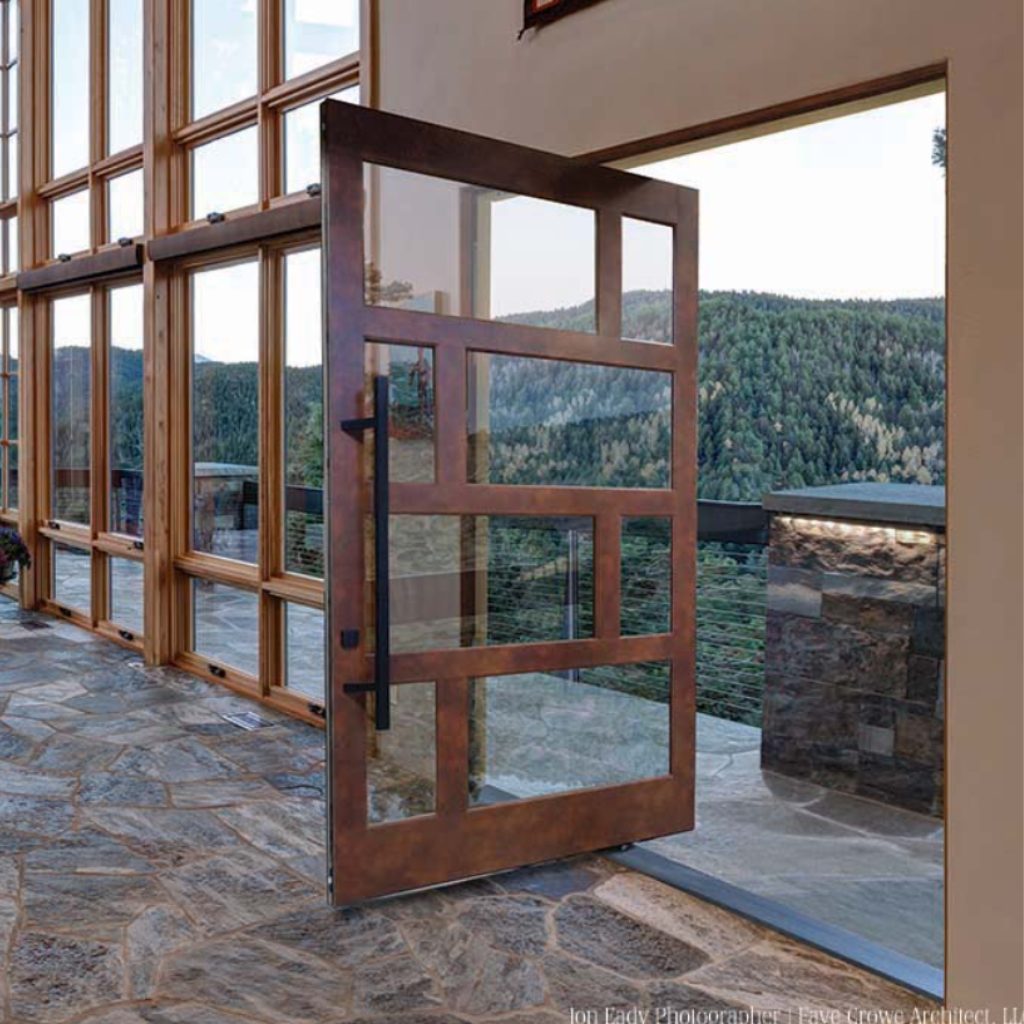

Sierra Pacific Pivot Doors redefine the entryway. With panels that appear to float within their frame, they combine effortless motion with sleek, contemporary design—perfect for creating dramatic, one-of-a-kind entrances.
2-1/4” (57 mm) thick panel floats on top and bottom pins for smooth movement
Heavy-duty extruded aluminum clad exterior with .062” (1.6 mm) thick frame & .075” (1.9 mm) thick panels, paired with a premium wood interior (9 species available)
Design dramatic entrances up to 50 sq ft (4.65 m²) per panel; max dimensions 10’ (3048 mm) high or 6’ (1829 mm) wide; available as inswing or outswing
Top rail: 6-3/8” (162 mm); Bottom rail: 10-1/4” (260 mm) or 12” (305 mm); Stiles: 4-5/8” (117 mm) or 6-3/8” (162 mm)
Multiple hardware options, including electronic locks for modern security
Specially designed low-profile thermally broken aluminum sill; sill height ½” (13 mm)
Standard 12” (305 mm) pivot point in head jamb and sill; custom pivot point available
No extra header or subfloor space required; minimum jamb depth 6-9/16” (167 mm)
Protected by exclusive CoreGuard Plus™, the industry’s best wood protection
Largest selection of options, including 50 premium powder-coat finishes
