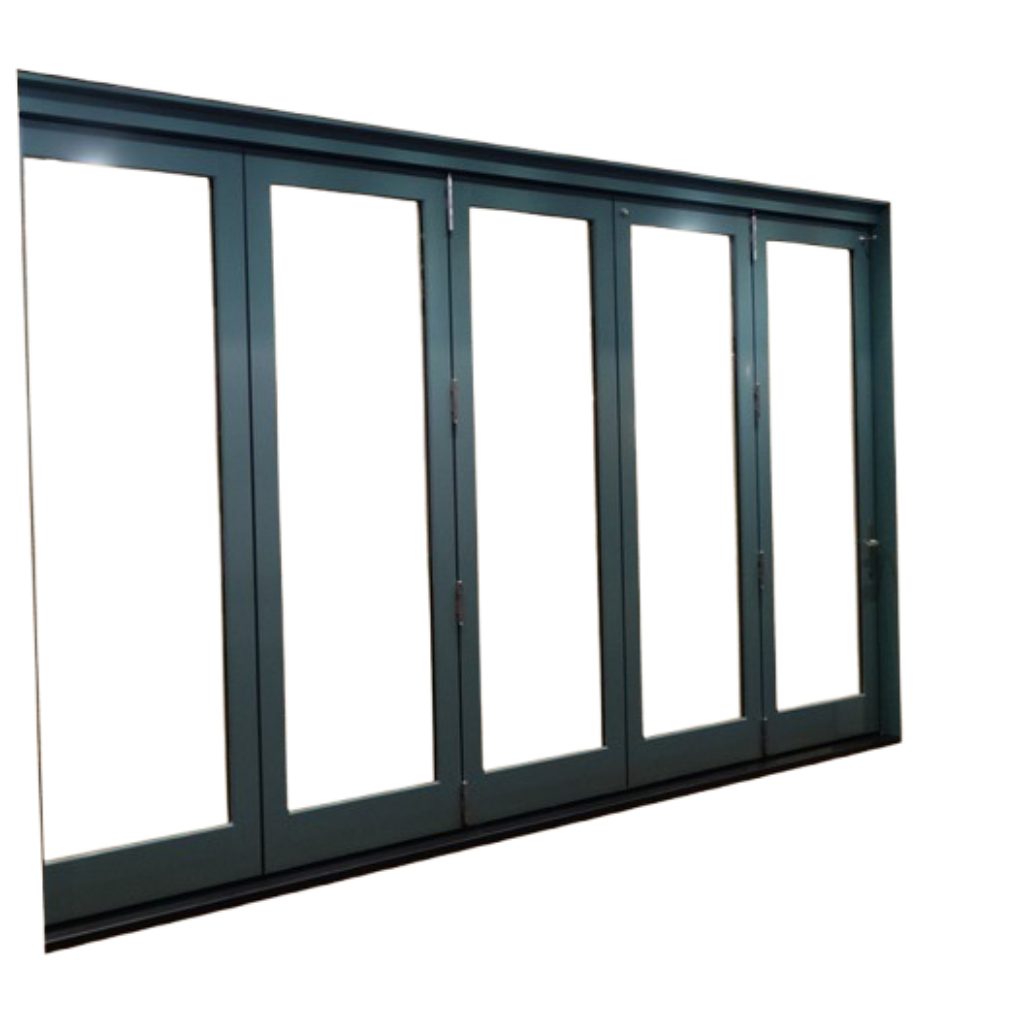

Sierra Pacific Bi-Fold doors transform walls into dynamic design features. Panels fold and stack to one or both sides, swing in or out, and even wrap a 90-degree corner. With an optional access panel for everyday use, they offer limitless possibilities for residential and commercial spaces.
Enjoy the view and fresh air with a bi-fold door up to 10’ (3,048 mm) tall and up to 23’ (7,010 mm) wide
When fully open, folding panels stack perpendicular to the wall to maximize space
Multiple operational configurations available
23’ (7,010 mm) wide with up to 8 panels (E3 max panel width: 48” (1,219 mm), max height: 119-1/2” (3,038 mm))
Standard bi-fold: 4-5/8” (117 mm) stiles and top rail, 6-3/8” (162 mm) bottom rail
2-1/4” (57 mm) thick panels
6-9/16” (167 mm) jamb required
Heavy-duty extruded aluminum cladding for a low-maintenance exterior
ADA sill or U-Channel optional
Symphony flush bolts standard; hidden multi-point optional
Largest selection of options, including 50 exterior colors in the industry’s best AAMA 2605 powder-coating for long-lasting color
